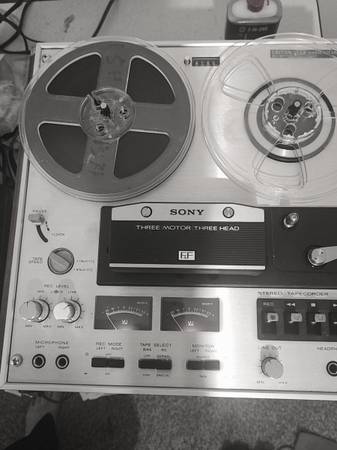

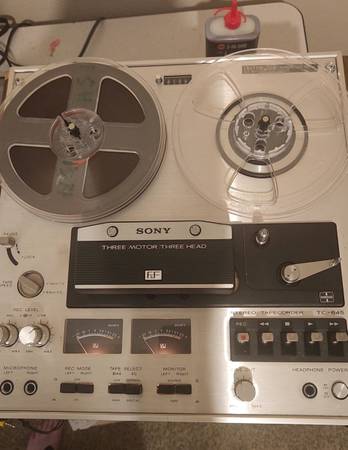

TC-645 Stereo Reel to Reel tape recorder - $150 (Des Moines)
QR Code Link to This Post
3 motor 3 head
tape reels included
Local pickup Cash only
The Sony TC-645 Stereo Tapecorder, made in Japan (1974 to 1976), is a 3-motor machine of very sturdy construction, especially suitable for those who require a recorder that will withstand regular heavy use.
The TC-645 Stereo Tapecorder is a 3-motor machine of very sturdy construction, especially suitable for those who require a recorder that will withstand regular heavy use. Three motors provide stable tape transportation with an effective scrape filter and tension arm. A three-head configuration unit with F & F (ferrite and ferrite heads that will last forever) enables real-time recording monitoring. It assures high-quality recording and playback with a frequency response of 30 - 25000 Hz (+3 dB) at 19 cm/sec. The transport controls are well laid out and offer a smooth, mechanical feel, ensuring precise operation. The unit has large, easy-to-read VU meters, allowing accurate level monitoring. Separated tape equalization and bias selector switches to obtain the utmost from your tapes
Track system: 4-track, 2-channel, stereo/monaural system
Heads: 1 x record, 1 x playback, 1 x erase
Motor: 1 x capstan, 2 x reel
Reel size: up to 7 inch reel
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.07% (7 1⁄2 ips)
Frequency response: 20Hz to 30kHz (7 1⁄2 ips)
Signal to Noise Ratio: 56dB
Total harmonic distortion: 1.2%
Input: 60mV (line), 0.2mV (mic)
Output: 0.775V (line)
Semiconductors: 19 x transistors, 15 x diodes, 4 x IC
Dimensions: 378 x 370 x 224mm
Weight: 18.5kg
Year: 1974
